Are these parts supposed to be connected?

[bigmike7801]

I started removing the top portion of my carb and realised the diaphragm came off all by itself with nothing connected to it.

I was under the impression that the long plastic piece below it (the slide I think) was supposed to be connected to it.

It appears that I can push the black plastic piece through the bottom of the diaphragm, and I attempted this, however it was going to take more force than I was willing to apply before making sure I was correct.

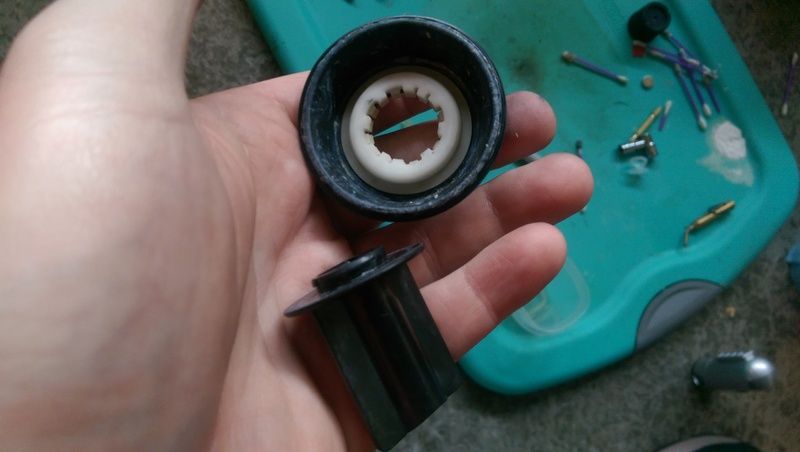

Here's a picture of the pieces in question.

[DeeDee]

Yep, you need to order #3 from the diagram.

http://www.scooterloungeonline.com/buddy125carburetor
